š„ Massive 560Ah LiFePO4 Battery ā Reliable, Safe & High-Efficiency Power for Caravan, Marine & Off-Grid Homes
Power up with one of theĀ largest capacity LiFePO4 batteries on the market. OurĀ 12.8V 560Ah lithium batteryĀ delivers a robustĀ 7168WhĀ of energyāideal for caravans, boats, and off-grid systems requiring extended runtime and peak performance.
ā Key Features:
-
Ultra-High Capacity: 560Ah capacity for long-lasting energy storage.
-
Premium Prismatic Cells: Enhance structural integrity and energy efficiency.
-
Advanced BMS Protection: Intelligent Battery Management System safeguards against overcharge, over-discharge, and temperature extremes.
-

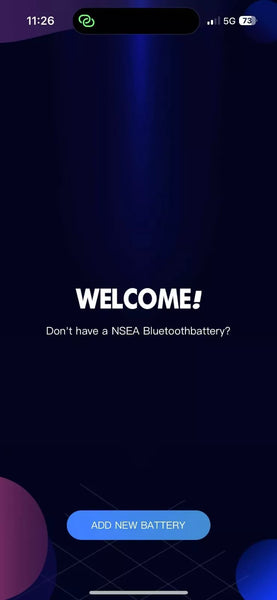

Bluetooth Monitoring: Real-time battery status via mobile app for easy management.
-
Rugged IP65 Design: Built to withstand dust, moisture, and tough conditions.
š Specifications:
-
Nominal Voltage: 12.8V
-
Energy Storage: 7168Wh
-
Nominal Capacity: 560Ah
-
Charge Voltage Range: 14.2ā14.6V
-
Discharge Cut-off Voltage: 10V
-
Reconnect Voltage: 10.8V
-
Charge Method: CC/CV
-
Max Charge Current: 300A
-
Continuous Discharge Current: 300A
-
Max Discharge (<1s): 450A
-
Self-Discharge: <5% per month
-
Cycle Life: >5000 cycles @ 100% DOD (0.5C, 25°C)
-
Dimensions: 660 x 245 x 330 mm
-
Weight: 63 kg
-
Operating Temp: Charge 0°Cā45°C / Discharge -20°Cā55°C
-
Storage Temp: -10°C to 50°C
-
Enclosure Rating: IP65
-
Communication: Bluetooth
-
Warranty: 3 years
š Applications:
-
Caravan & RV systems
-
Marine power systems
-
Off-grid solar energy storage
-
Remote cabins, farms, and backup power
