SPF 6000T HVM-G2
·Support Up to 6 in parallel
·Extended surge rating suitable for motor loads
·Wide PV input voltage range up to 250Vdc
·Parallel for high scalability
·Load segment control to maximize
· Warranty extend to 5 years

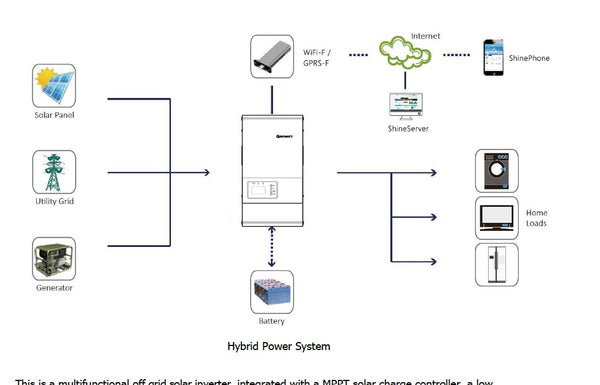

This is a multifunctional off-grid solar inverter that integrates an MPPT solar charge controller, a low-frequency pure sine wave inverter, and a UPS module into a single unit. It is ideal for off-grid backup power and self-consumption applications.
The inverter can operate with or without batteries. To complete the system, additional components such as PV modules, a generator, or a utility grid connection are required. Please consult your system integrator for other possible system configurations tailored to your needs.
For remote monitoring, the inverter supports an optional plug-and-play WiFi / GPRS module. This device allows users to check the PV system status anytime, anywhere, via a mobile app or website.
Features

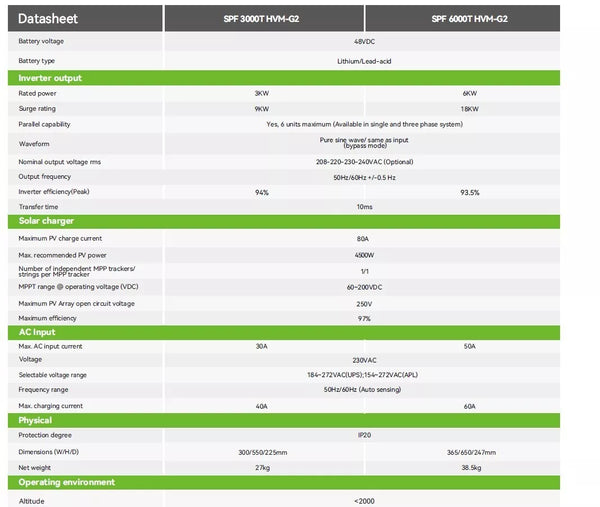

Rated power 6000W, power factor 1
PV input voltage ranges 60~250Vdc
Low frequency inverter with large transformer
Pure sine wave AC output
Solar and utility grid can power loads at the same time
With CAN/RS485 for BMS communication
System will go to bypass and cut off charging if an error happens under utility grid mode
With the ability to work without battery (only under utility grid mode)
WiFi/ GPRS remote monitoring (optional)
As this is an low frequency pure sine wave inverter, the total weight with box is around 45kg, we provide free delivery for most of the customer to the nearest Courier depot or commercial address with a forklift on site.
For some really far away remote area, please consult seller if we can delivery to you before purchase.
