Introduction:
The Victron MultiPlus-II 48/8000/110-100/100 230V (model PMP482805000) is a high-capacity inverter/charger designed for demanding energy systems, including residential, commercial, and off-grid applications. It combines a powerful pure sine wave inverter, an advanced battery charger, and a high-speed AC transfer switch into one compact unit.

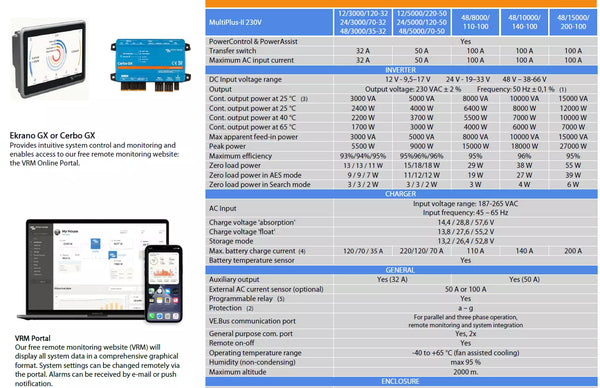

Key Specifications
-
Inverter Output: 8,000 VA / 6,400 W continuous at 25°C
-
Battery Voltage: 48V DC
-
Charger Capacity: 110A
-
AC Output Voltage: 230 VAC ±2%
-
Frequency: 50 Hz ±0.1%
-
Transfer Switch: 100A
-
Peak Efficiency: Up to 95%
-
Dimensions: 648 x 363 x 206 mm
-
Weight: Approximately 45 kg
-
Protection Class: IP22
Core Features
-
PowerControl & PowerAssist: Manages and supplements grid or generator power to prevent overloads.
-
Energy Storage System (ESS) Compatibility: Integrates seamlessly with solar charge controllers and grid-tie inverters.
-
Uninterrupted AC Power (UPS Function): Ensures continuous power supply during grid failures.
-
Parallel & Three-Phase Operation: Supports system expansion for higher power demands.
-
Remote Monitoring & Control: Compatible with Victron's VRM Portal and GX devices for real-time system management.
-
Adaptive Charging: Five-stage charging algorithm ensures optimal battery health.
-
Anti-Islanding Protection: Built-in safety feature for grid-connected applications.

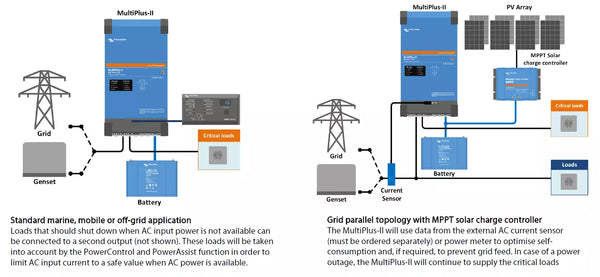

Ideal Applications
-
Off-grid residential systems
-
Commercial backup power solutions
-
Marine and mobile power setups
-
Grid-tied solar installations with battery storage
Product Overview
The Victron MultiPlus-II 48/8000/110-100/100 230V is a versatile inverter/charger that combines a powerful pure sine wave inverter, advanced battery charger, and high-speed AC transfer switch into one compact unit. Its high power output and advanced features make it suitable for both off-grid and grid-connected systems. With the ability to manage multiple power sources and ensure uninterrupted power supply, it stands as a reliable choice for various energy needs.
